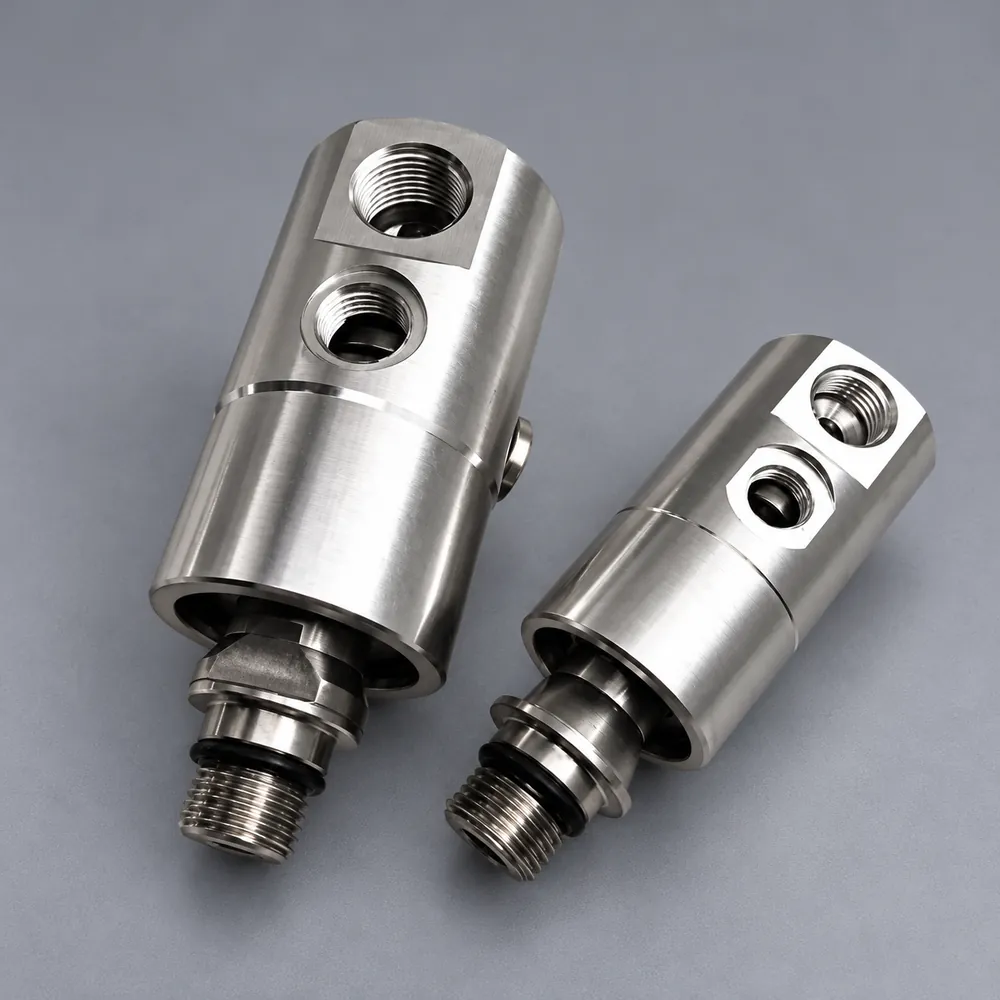

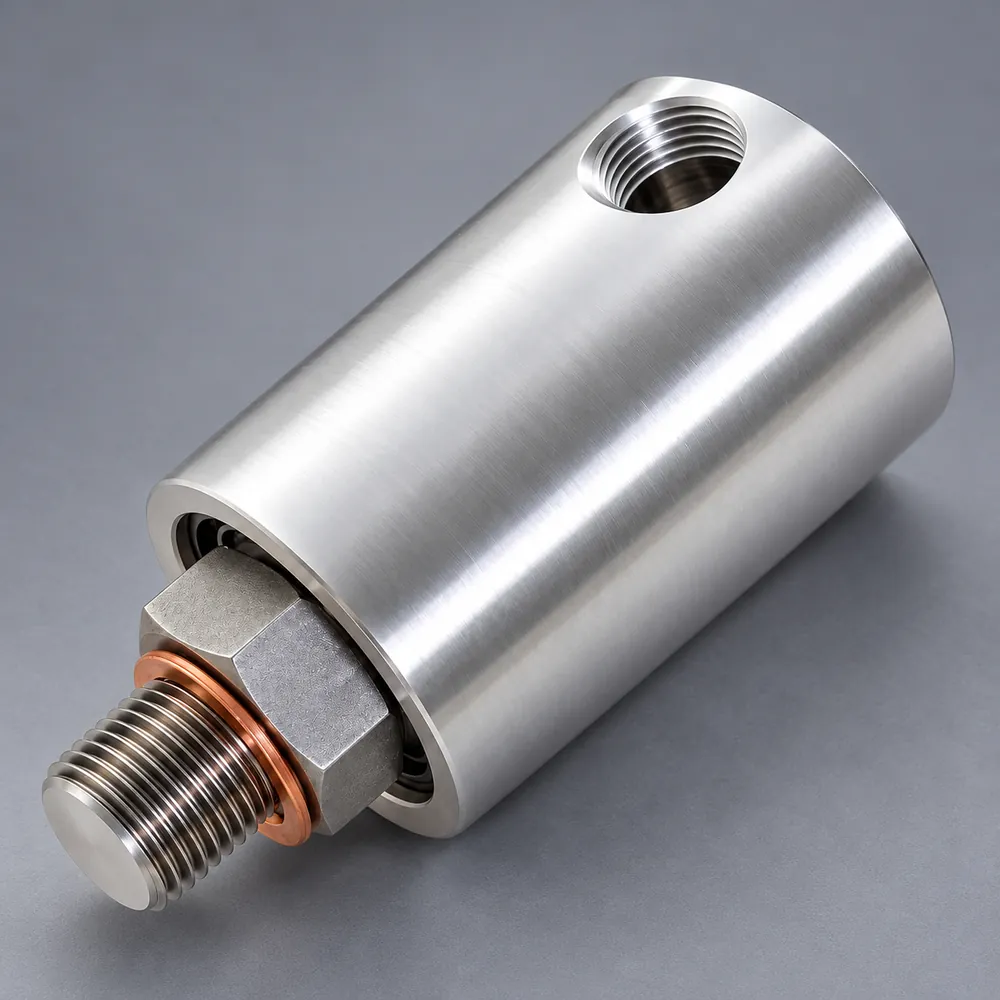

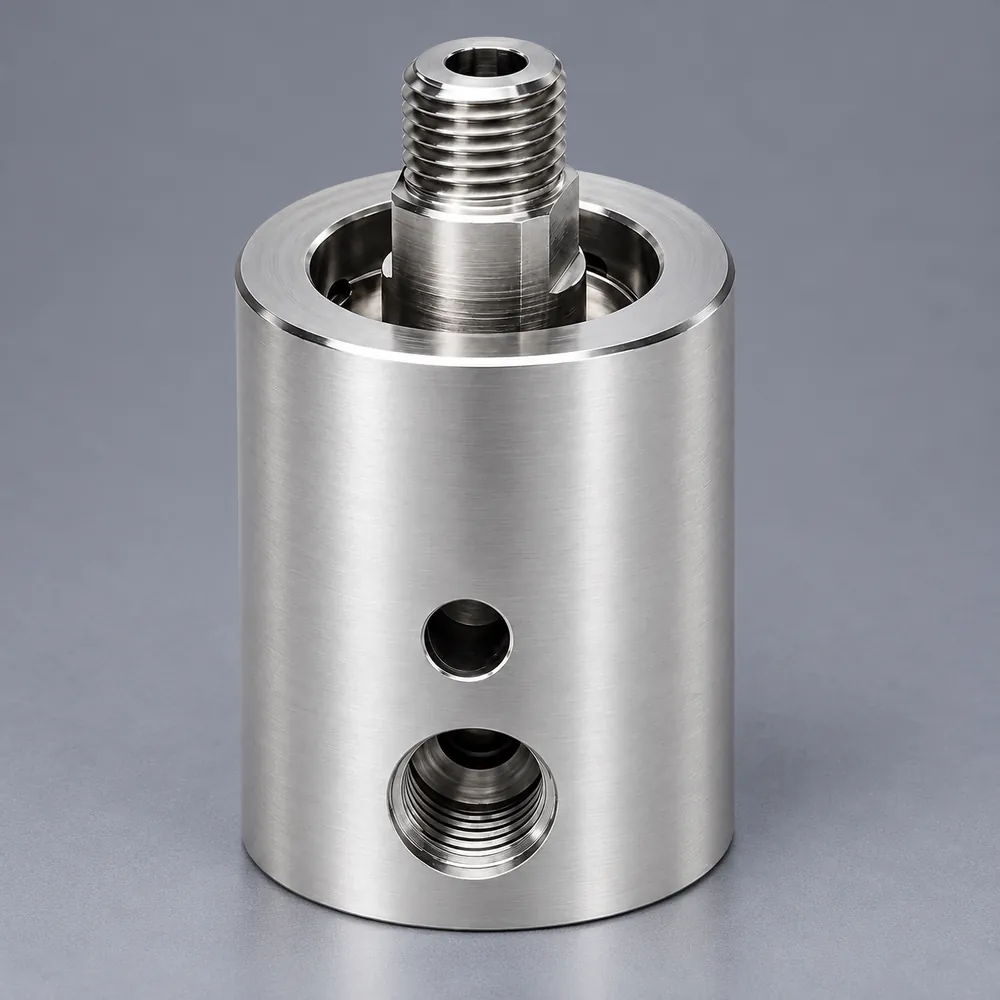

The 103 Series Rotary Union features an Anodized Aluminium Housing with stainless steel internal components. Designed for air, water, coolant and hydraulic oil applications, it offers reliable sealing, lightweight construction, and dependable performance for a wide range of industrial applications.
Robust self-supported design for reliable operation.
Made from aluminium anodized housing and stainless steel rotor for durability and corrosion resistance.
Balanced mechanical seal design for reliable and efficient sealing performance.
Different seal material combinations are available to suit various operating conditions.
Suitable for applications ranging from normal water supply to CNC coolant applications.
| Media | air, water, coolant,& hydraulic oil applications |
| Max. speed — ⅛″ to 1″ | 3500 RPM |
| Max. speed — 1¼″ to 2″ | 750 RPM |
| Max. pressure — air, gas & water | 15 bar |
| Max. pressure — coolant | Up to 60 bar |
| Max. pressure — hydraulic oil | Up to 30 bar |
| Max. temperature | 60°C for all media |
| Size | ¼″ to 2″ BSP |
| Connection type | ISO 228 (NPT / Metric) |
| Quick release nipple | Flange type |
